End Flange Plate For Concrete Pipe Pile 250MM To 1400MM

Name: End Flange Plate For Concrete Pipe Pile 250MM To 1400MM
Brand: LONGTENG
Price: 1 USD

Buy cheap End Flange Plate For Concrete Pipe Pile 250MM To 1400MM product

Brand Name : LONGTENG

Model Number : D300X180X12-D600X400X15

Place of Origin : CHINA

MOQ : 25MT

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 4,000MT/MONTH

Delivery Time : 30 DAYS

Packaging Details : SEAWORTHY OF PACKING

Applicatoin : Steel Flange for Prestressed Concrete Pile

Material : Q235B or Q195

DIAMETER : D300-D1200

Connection : Welding

BRAND : LONGTENG

Standard : GB Standard or Japanese Standard

HS CODE : 730791

Contact Now

D300-D600, Q235,Steel Flante for Prestressed Concrete Pile

Concrete pile end plate is a fixed connecting part for steel cage of concrete pile, it bears and transfers all loads of tensioning. And end plate is also the important part to connecting two concrete piles together, so the material of the end plate should be better weldability and mechanical strength.

Specificatoins:

Material	Q195/Q235
Application	Construction of road, bridge, port, buildings, power plant and so on
Nominal Diameter	250MM~1400MM
Main reinforcement diameter	7.1~12.6mm
Hole count	7-40
Common thickness	12MM~28MM
Remark	We can also produce as customers' special request

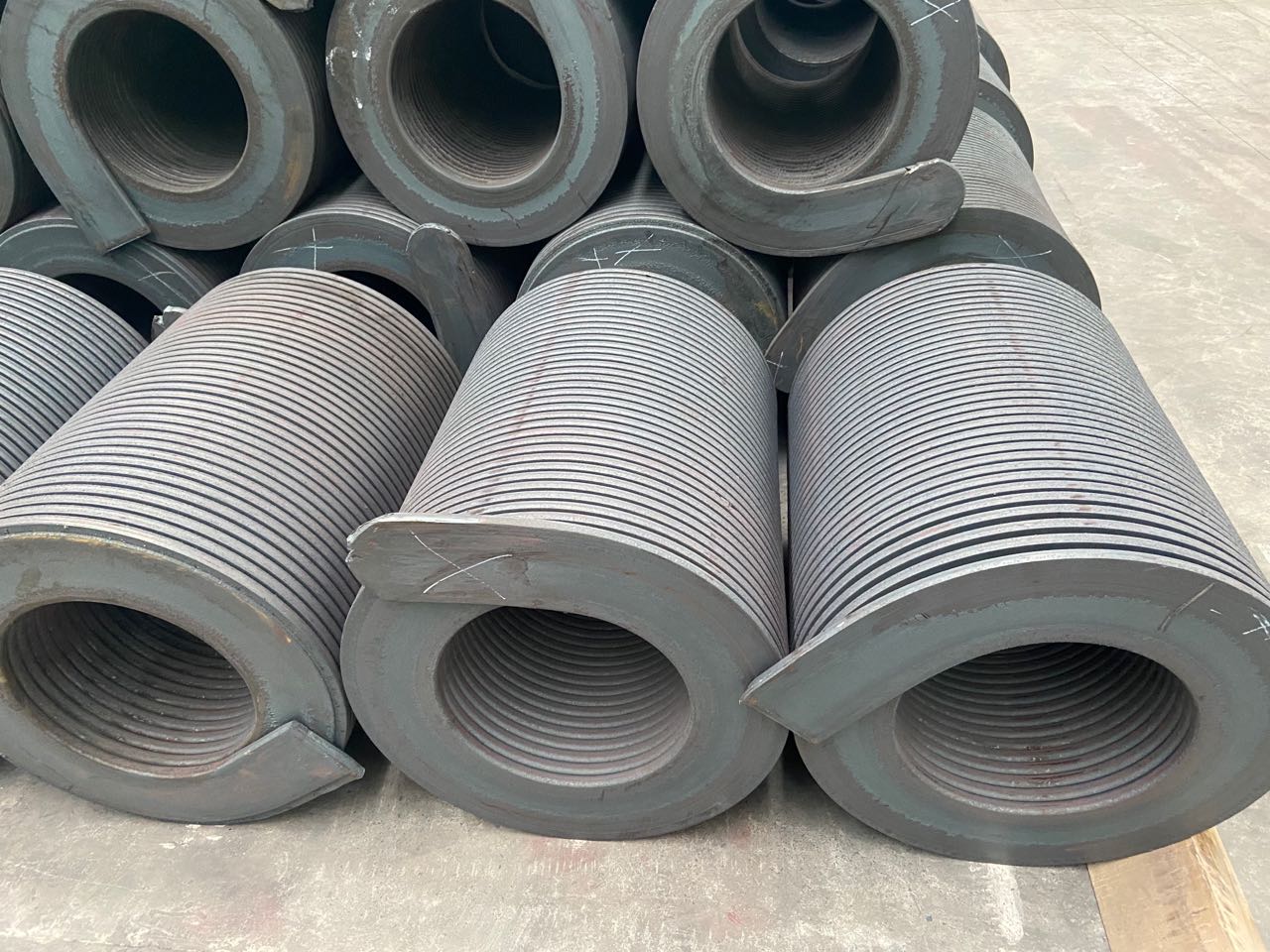

The Raw material blast furance billet made by our own steel mill :

End Flange Plate For Concrete Pipe Pile 250MM To 1400MM

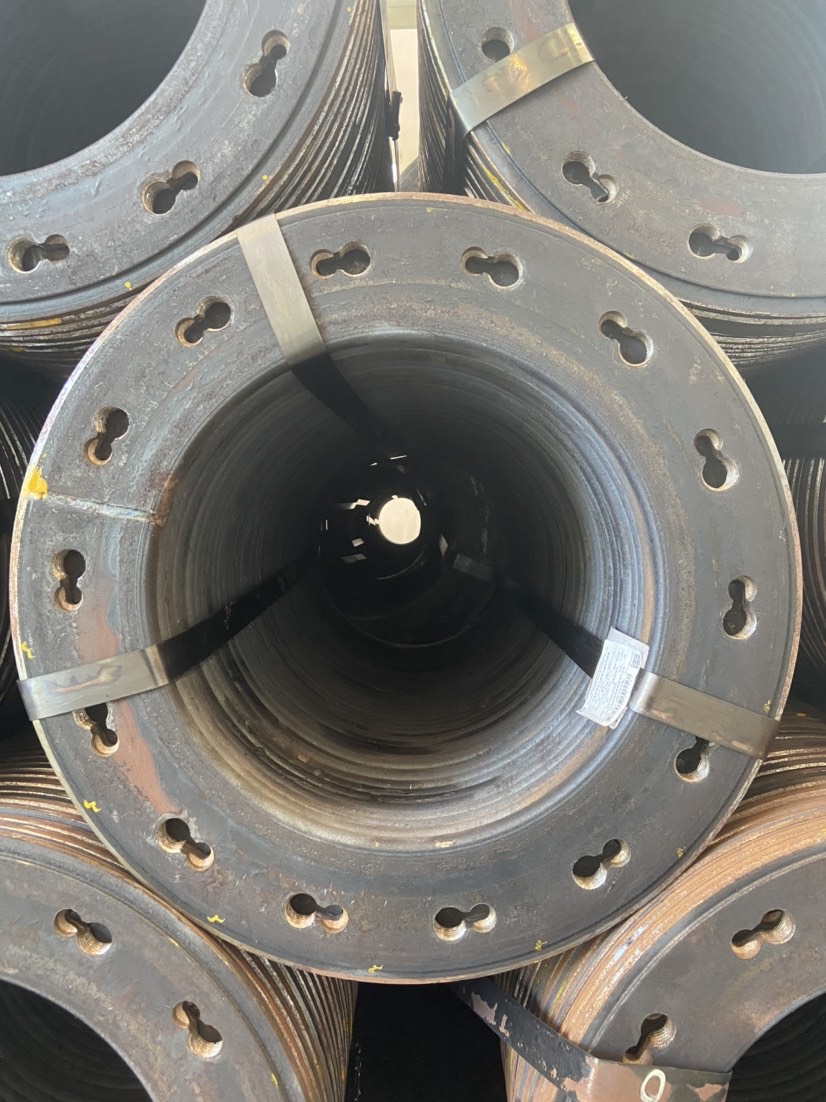

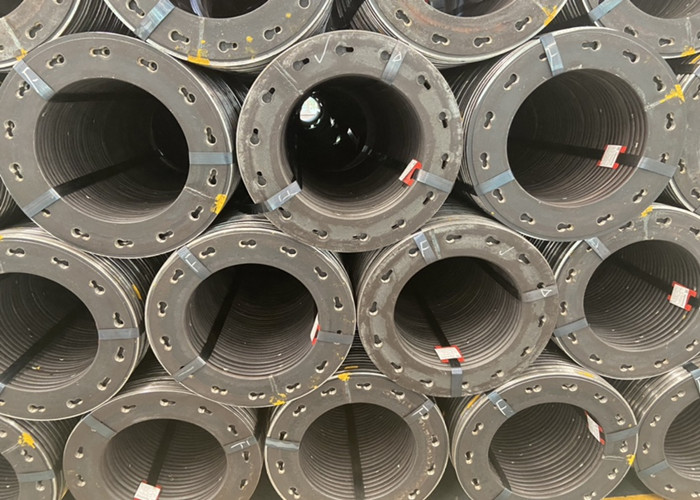

Product detail:

End Flange Plate For Concrete Pipe Pile 250MM To 1400MM

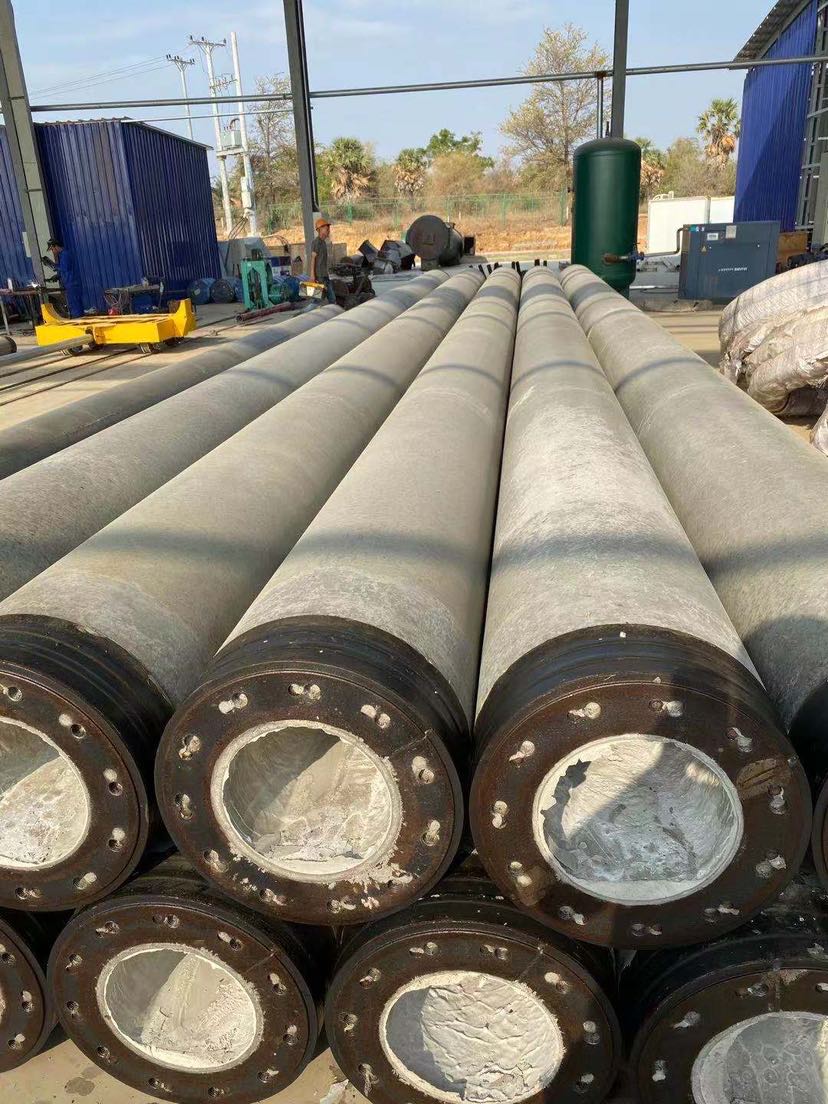

Application of end plate on prestressed concrete pile :

End Flange Plate For Concrete Pipe Pile 250MM To 1400MM
